REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

SPARE TIRE DELETE

• (STD)

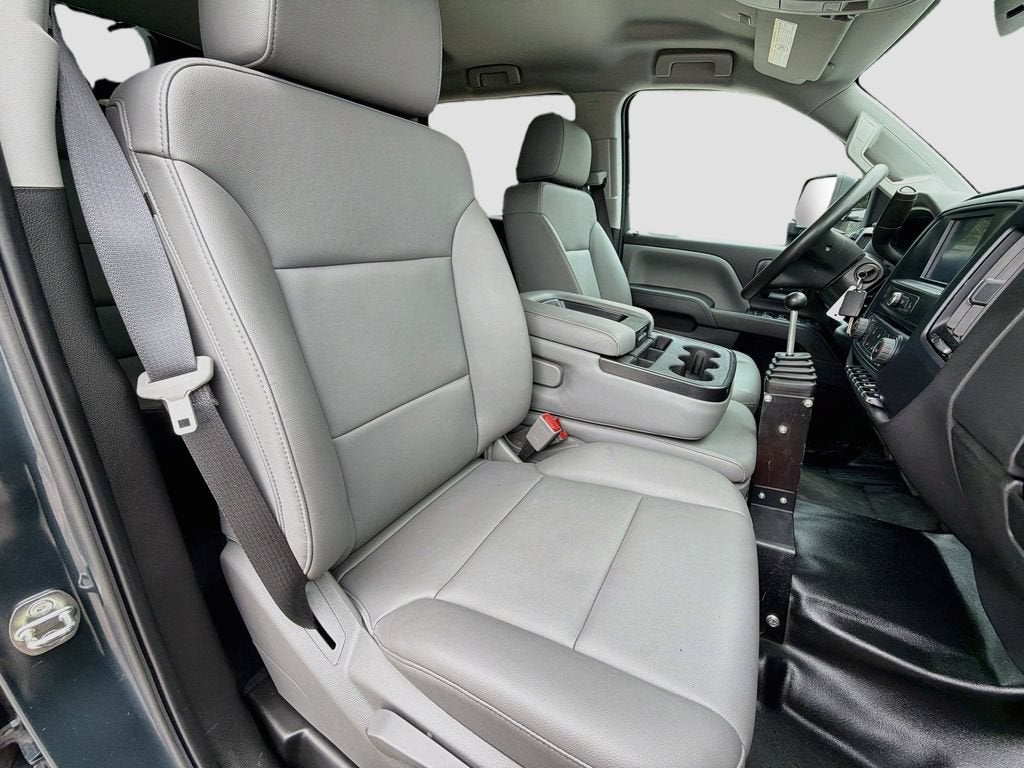

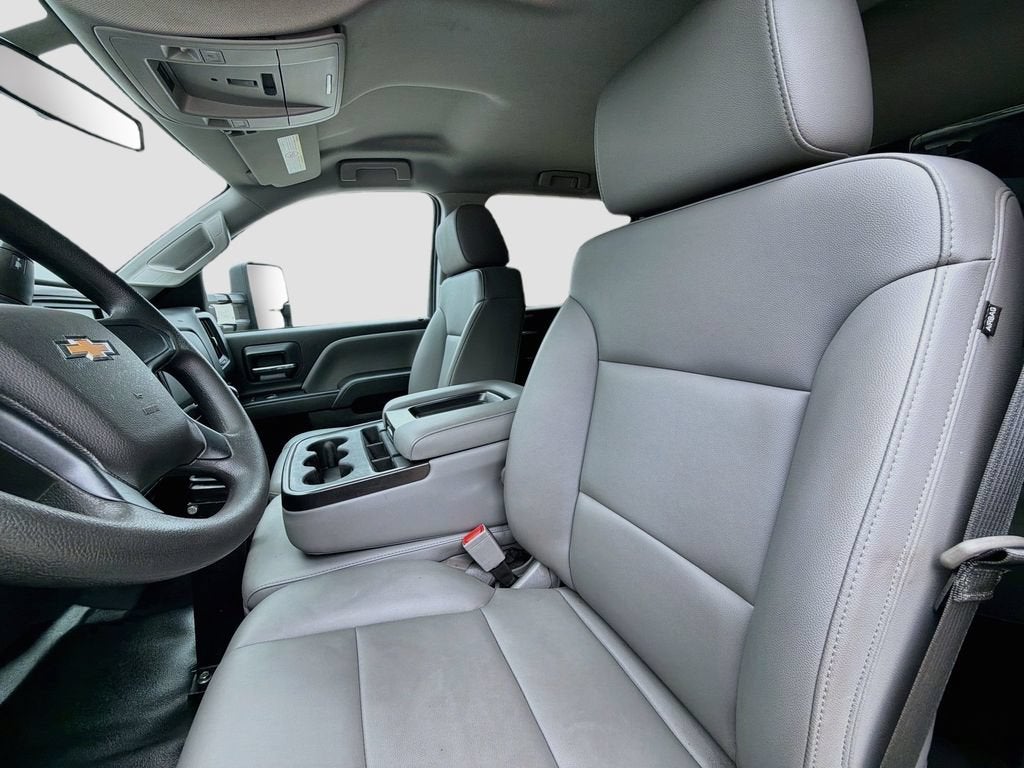

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

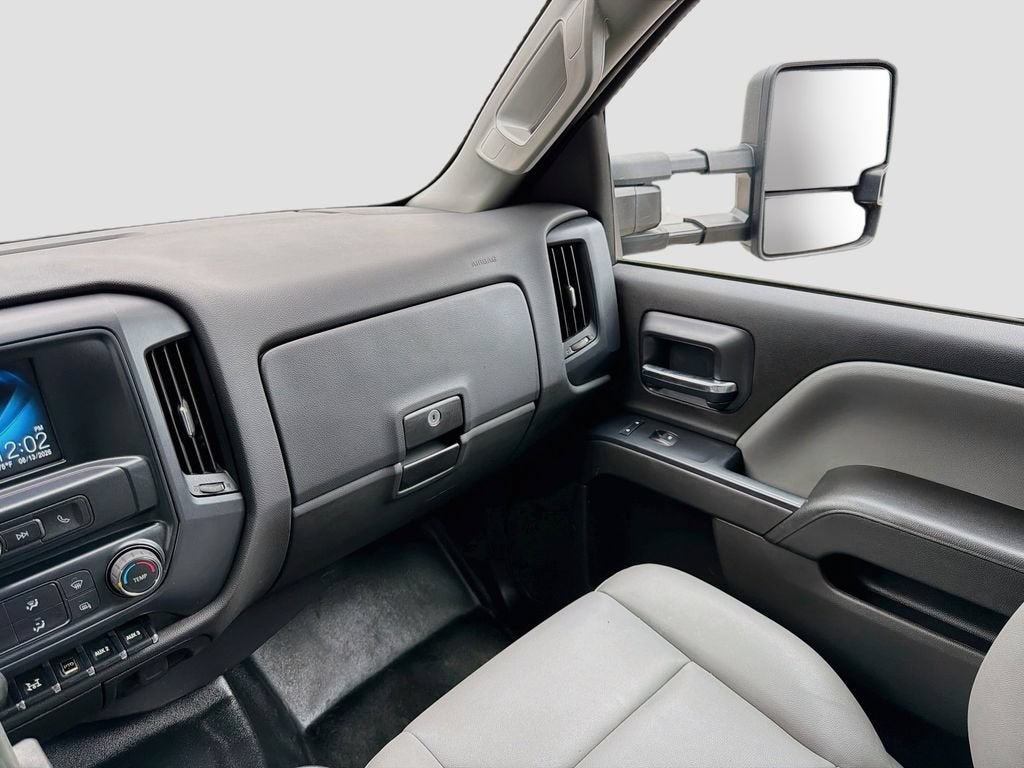

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

FRONT SUSPENSION, 7,000 LB. (3,175 KG) MULTI-LEAF, INCLUDES SHOCK ABSORBERS

• (STD)

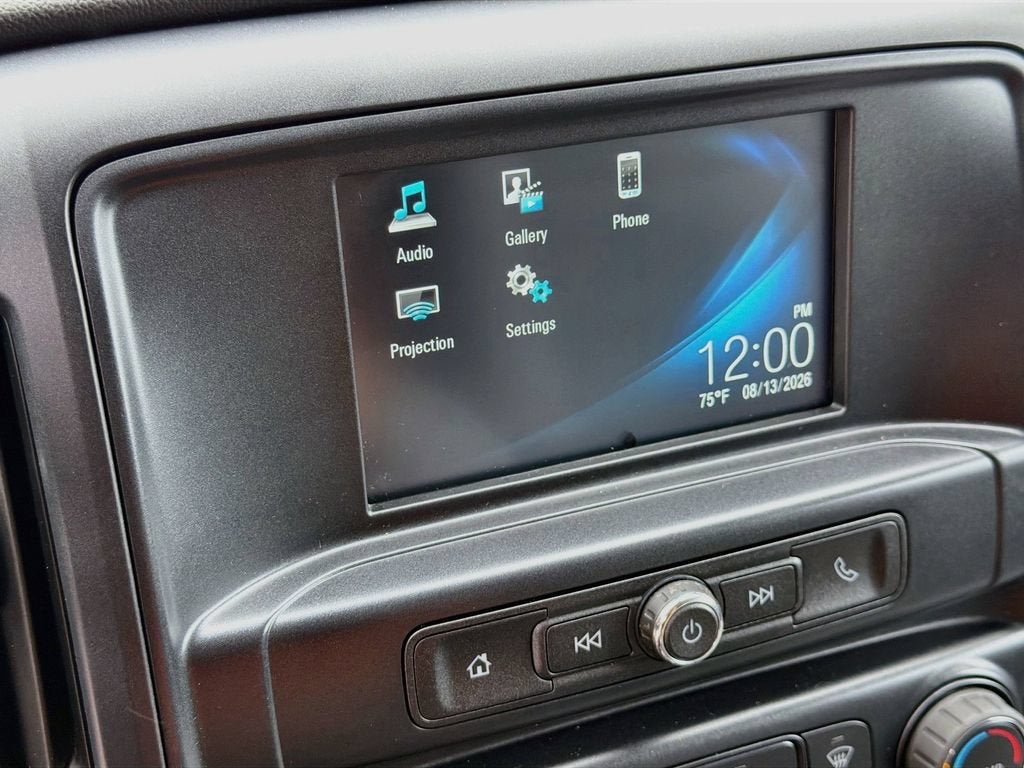

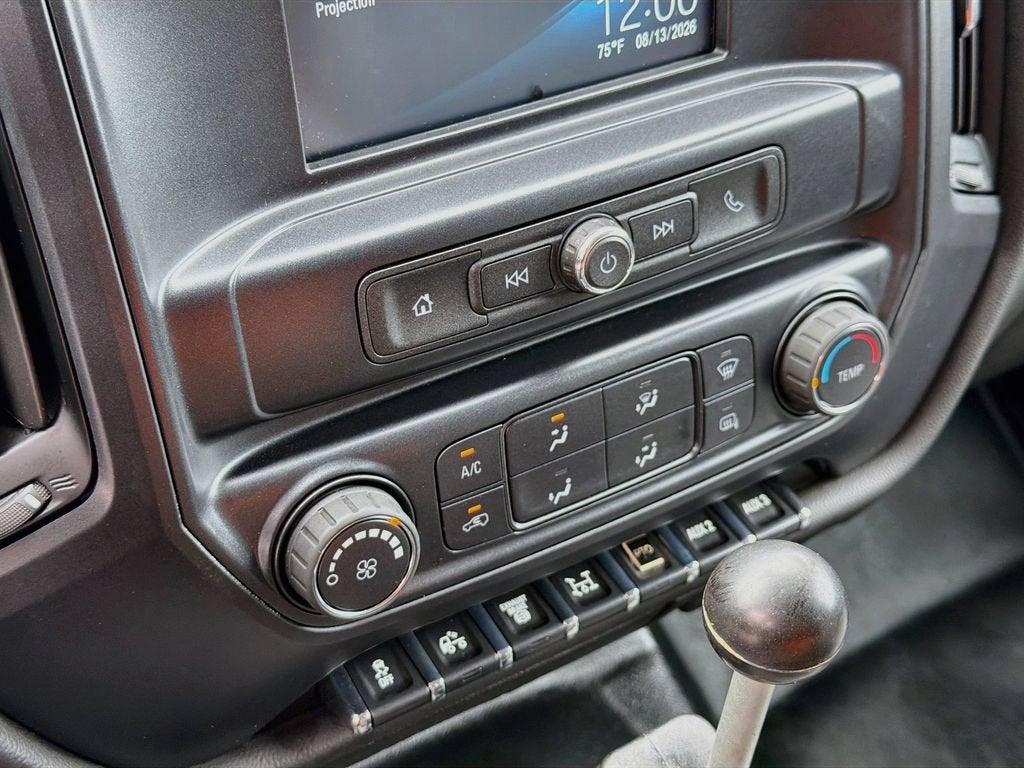

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

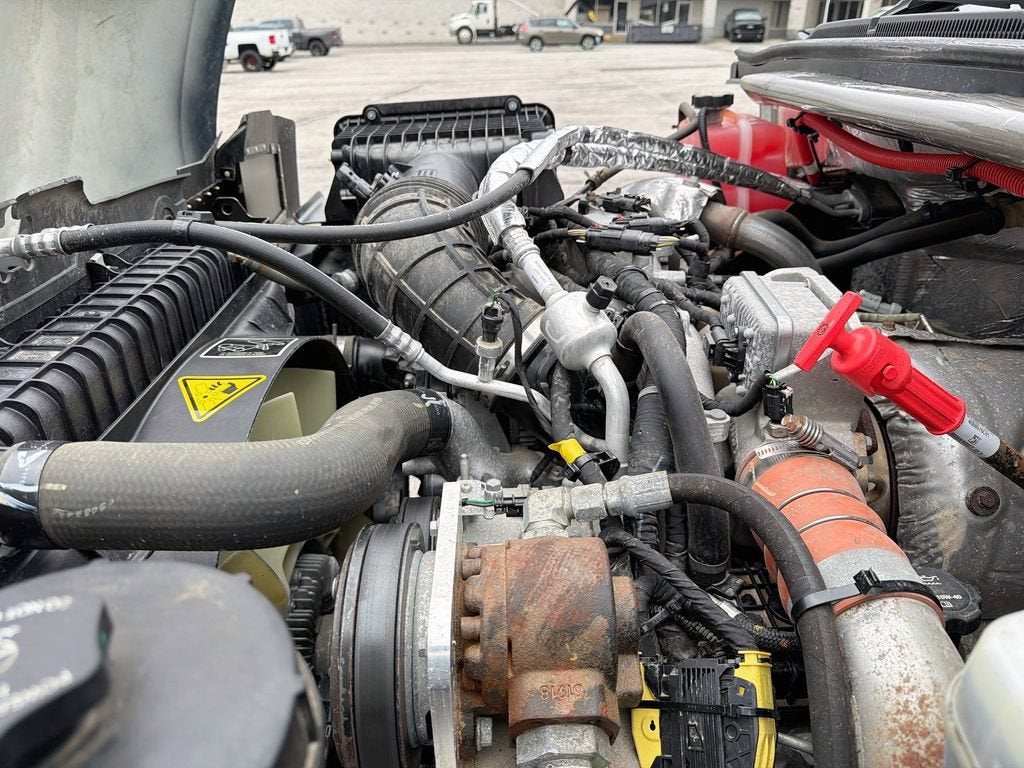

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

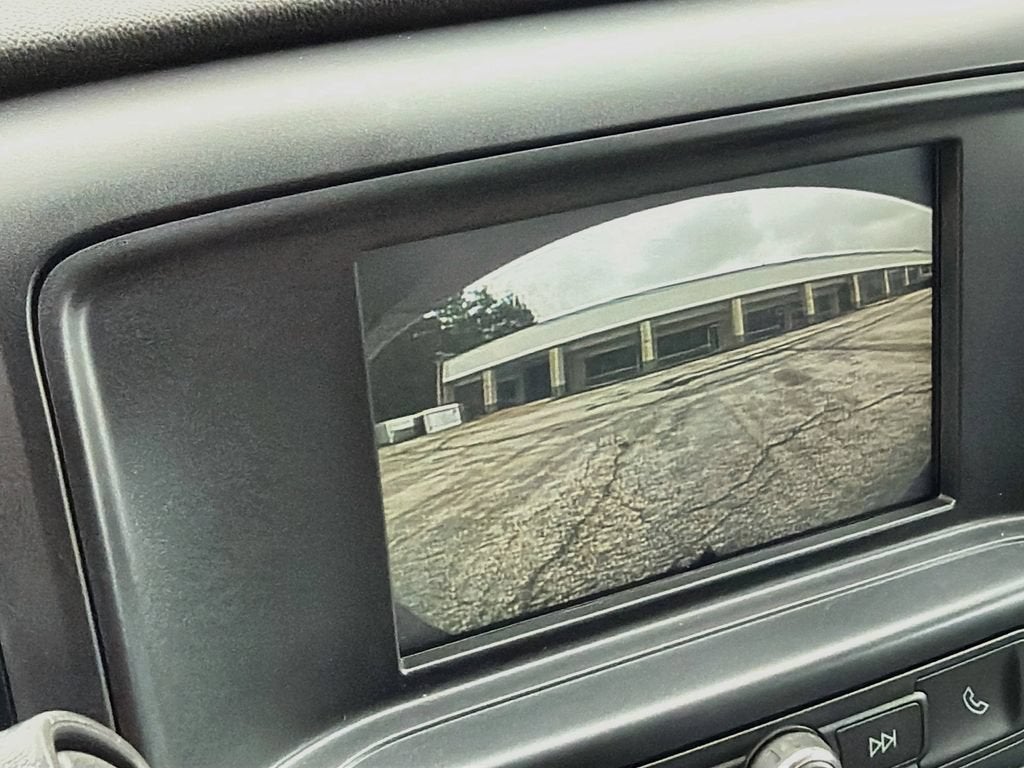

REAR VISION CAMERA, DISPLAY INTEGRATED INTO RADIO

• (Shipped loose in cab for upfitter installation.)

SNOW PLOW PREP PACKAGE

• includes (UNL) auxiliary harness for headlamps and turn signals
• (KW5) 220-amp alternator
• forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL

• Max Axle Load: 7
• 940 lb.

TIRES, REAR 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL

• Max Axle Load: 15
• 000 lb.

• ADDITIONAL FUEL

• 5 GALLONS

  GLASS

• DEEP-TINTED

  REMOTE KEYLESS ENTRY

  WHEELBASE

• 199" (505.5 CM)
• 84" CA

  AXLE TO END OF FRAME

• 63"

  FRONT STABILIZER BAR

  FRONT FENDER EXTENSION

• PAINTED BODY COLOR

  FRONT AXLE

• 7
• 000 LB.
• DANA SPICER D800-N
• "I"-BEAM
• NON-DRIVING

  SHOCK ABSORBERS

• REAR

  AXLE

• LIMITED SLIP
• DANA SPICER TRUETRAC
• TORQUE PROPORTIONING LIMITED SLIP

  GRAPHITE METALLIC

  REAR SUSPENSION

• 13
• 500 LB. (6
• 123 KG) MULTI-LEAF
• VARI-RATE

  GVWR

• 19
• 500 LB. (8845 KG)

  DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS

• VINYL SEAT TRIM

  REAR AXLE

• 13
• 500 LB. (6
• 124 KG) DANA SPICER S14-110
• SINGLE REDUCTION

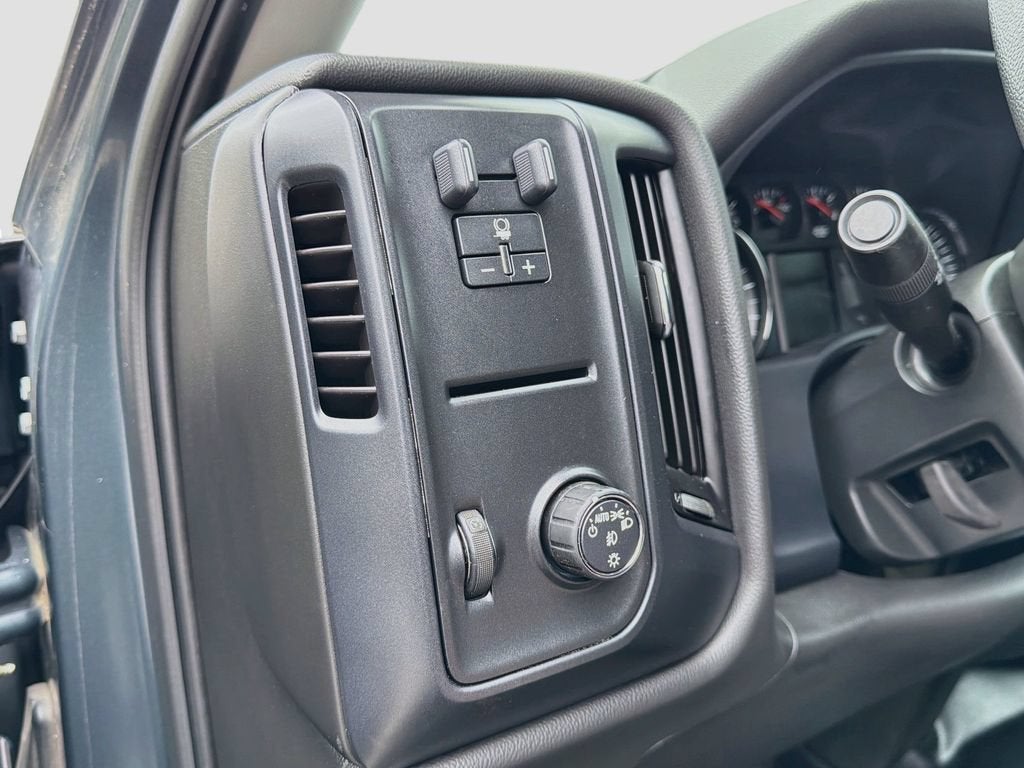

  TRAILER BRAKE CONTROLLER

• INTEGRATED

  ENGINE BLOCK HEATER

  POWER OUTLET

• 110-VOLT AC

  ALTERNATOR

• 220 AMPS

  WHEELS

• 19.5" X 6.75"
• STEEL
• GREY PAINTED
• 8-HOLES
• HUB PILOTED

  30

• 000 LB. GCWR (13
• 607 KG)

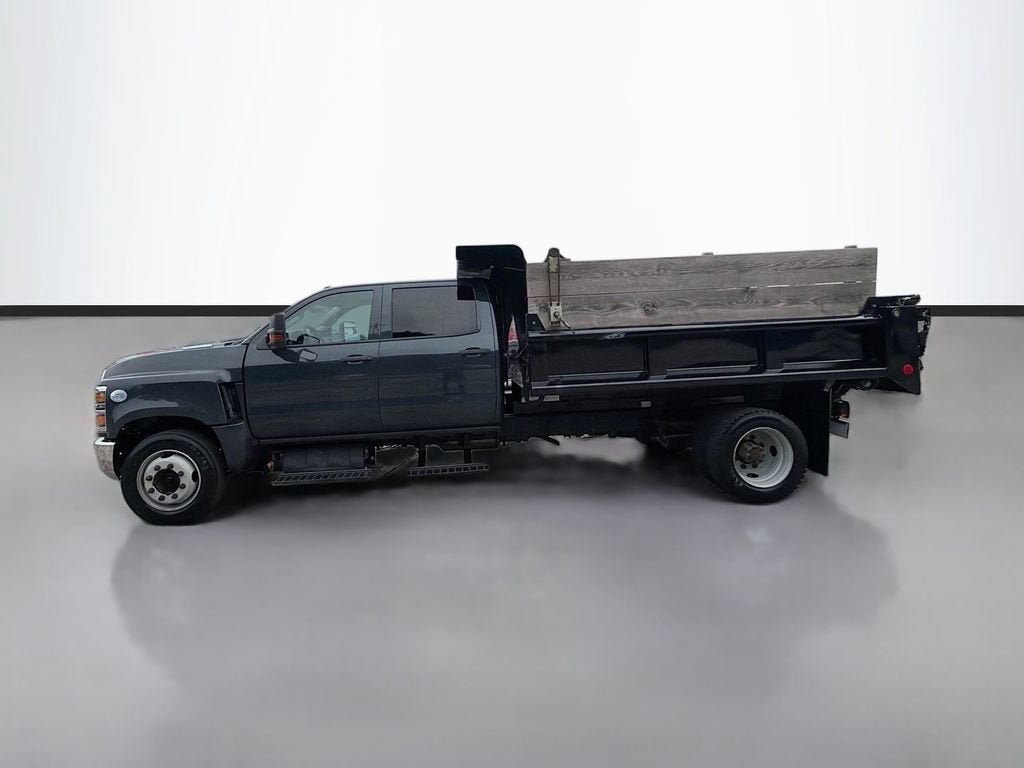

  5500 HD SERIES

  FOG LAMPS

• FRONT
• HALOGEN

  AUXILIARY HARNESS

• 3' FOR HEADLAMPS AND TURN SIGNALS

  TRAILERING PROVISIONS

• TRAILERING WIRE HARNESS ONLY
• TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.

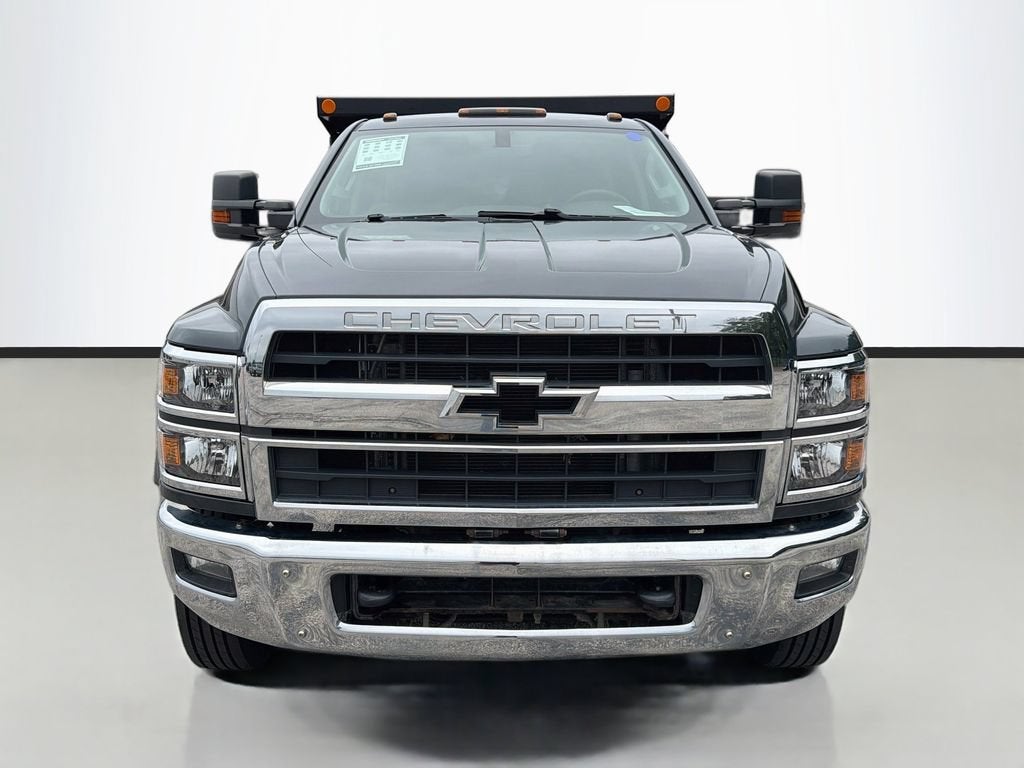

  GRILLE

• CHROME

  BUMPER

• FRONT CHROME

  RECOVERY HOOKS

• FRONT
• FRAME-MOUNTED
• BLACK

  PAINT

• SOLID
